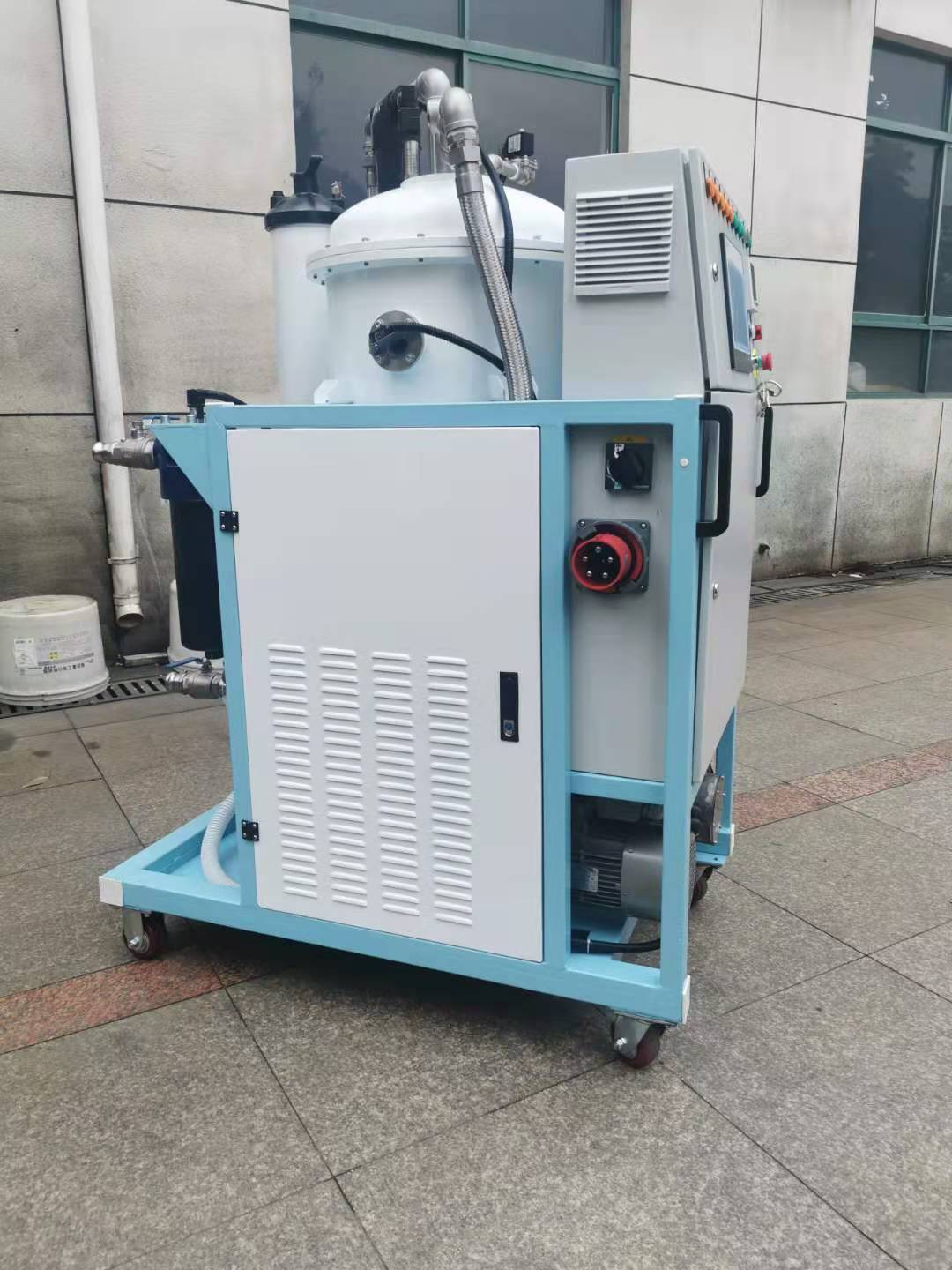

PAL series vacuum oil filter equipment features:
1: the use of silent transmission oil pump, oblique tooth design, suitable for temperature in -20℃ to 80℃, viscosity 10 to 1000CST under the condition of use.
2: The oil pump and filter adopt safety valve design, which can realize temporary unloading when overpressure, and protect the overload operation of the motor.
3: The filter is made of aluminum alloy material, which is light and corrosion-resistant, and the liquid will not produce pollutants due to the corrosion of the shell.
4: The oil pump is equipped with a protective filter to ensure the service life of the oil pump gear.
5: The motor and electrical appliances adopt phase-missing protection, which can prevent the motor from reversing or phase-missing operation when the phase line is misconnected, and protect the service life of the oil pump.
6: the use of oil sampling valve design, easy to filter the liquid test and drain out the tubing liquid, reduce liquid pollution to the environment.
7: Visual intuitive pressure gauge is adopted to monitor the filter life in real time.
8: The filter is installed with an exhaust valve, which can empty the air during operation and reduce the vacuum phenomenon during liquid intake, so that the liquid in the filter can be fully loaded.
9: design of acousto-optic overpressure alarm device, warning the replacement of filter element, overpressure, super liquid level, overtemperature operation of the fault prompts.
10: Unattended safety protection: the filter equipment runs under the specified pressure. If the set pressure is reached, the electric machine will automatically stop and send out an alarm signal.Can protect the motor overload operation and filter damage, truly unattended.
11: Install the inlet and outlet ball valves to ensure that the drip of residual liquid after filtration and the protection equipment will not pollute the filter body and filter core because of long time non-operation.
12: The oil filter can also be used for oil filtration and refueling.
13 :(optional accessories) automatic, semi-automatic, oil filter equipment with oil detection instrument.
Note: the power must be turned off when not in use. When enabled, first open the oil inlet valve of the detector, refer to the operation manual of the detector for details.
Special fiber materials
Filter material
